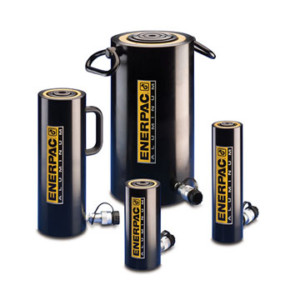

▼ From left to right: RAC-5010, RAC-15010, RAC-304, RAC-208
Enerpac RAC-Series Lightweight Hydraulic Aluminium Cylinders
Product images are for reference purposes only and may differ from the actual product.

RAC-Series, Aluminium Cylinders

The Lightweight Enerpac Hydraulic Aluminium Cylinder at a glance:

  • Capacity: 20 – 150 ton
  • Stroke: 50 – 250 mm
  • Maximum Operating Pressure: 700 bar
  • Return Type: Single-Acting, Spring Return
  • Plunger Type: Solid
  • Material: Aluminium
  • Maximum Operating Pressure: 10 000psi

RAC-SERIES PRODUCT DESCRIPTION

  • Composite bearings prevent metal-to-metal contact, increasing cylinder life and resistance to side-loads of up to 10%
  • Hard-Coat finish on all surfaces resists damage and extends cylinder life
  • Handles included on all models
  • Steel base plate and saddle for protection against load induced damage
  • Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity
  • High strength return spring for rapid cylinder retraction
  • CR-400 coupler and dust cap included on all models
  • All cylinders meet ASME B-30.1 and ISO 10100 standards.

Saddles
All RAC-cylinders are equipped with bolt-on removable hardened steel saddles.

Gauges
Minimize the risk of overloading and ensure long, dependable service from your equipment. Refer to the System Components Section for a full range of gauges.
