The new SFM-Series Split Flow Manifolds plug the gap between simple manifolds and split flow pump systems. They provide easier and more accurate control for multiple lifting points than the AM-Series Manifolds without the need to invest in more costly split flow pump systems.

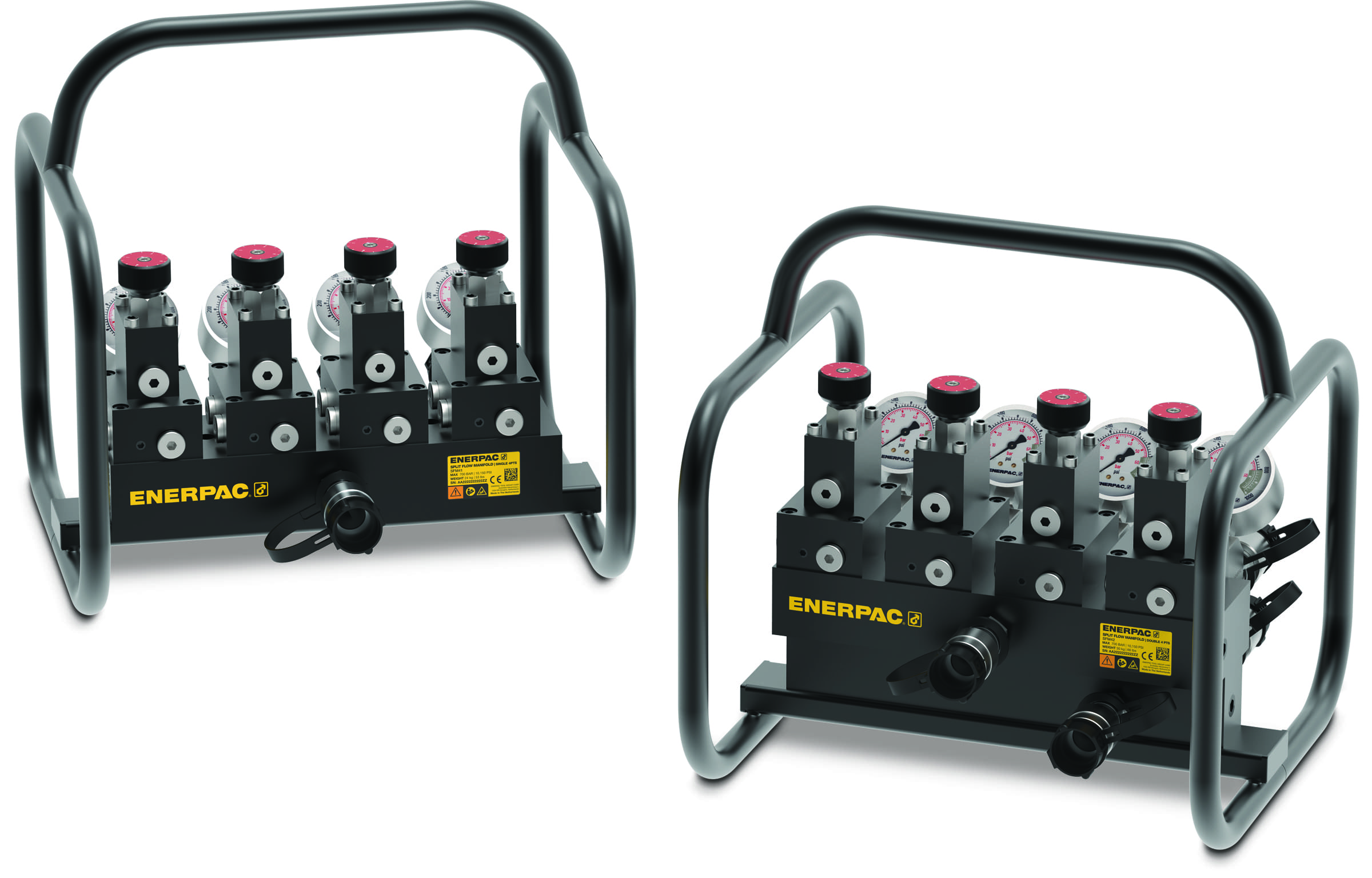

New-Enerpac-SFM-Series-Split-Flow-Manifolds

Features & Benefits

  • Split-Flow Manifolds improve safety, precision and control in lifting and lowering operations
  • Pressure gauge, flow control valve and couplers in each outlet port
  • Regulates both advance and retract speeds: lifting and lowering
  • Maximum of 4 cylinders per manifold:
    SFM41 for single-acting cylinders,
    SFM42 for double-acting cylinders (For projects requiring more than 4 lift points, you can add extra SFM manifolds to the same pump to allow the simultaneous operation of 8, 12, or 16 cylinders.)
  • Minimum oil flow of the pump: 50 in3/min (0,82 l/min) to deliver 9.1 in3/min (0,15 l/min) per cylinder
  • Maximum difference among outlets: 10% of the stroke
  • More cylinders can be controlled simultaneously by connecting several SFM-models parallel.

Get in touch with us to find the best hydraulic cylinder solution for your project today.
