LGH-Series, Hydraulic Lock-Grip Pullers
The LGH-Series, Hydraulic Lock-Grip Pullers are the simplest, safest and most cost effective way to remove shaft-mounted parts.
- Puller Capacity: 10 – 64 ton
- Maximum Reach: 215 – 408 mm
- Maximum Spread: 300 – 660 mm
- Maximum Operating Pressure: 700 bar
- Puller Power Source: Hydraulic
LGH-Series, Hydraulic Lock Grip Pullers provide the same safety and ease of use as their mechanical counterpart, with the pulling force applied by a standard 700 bar hydraulic cylinder.
LGH-Series pullers can apply up to 64 tons of force and are perfect for removing larger shaft-mounted objects up to 660mm diameter.
Turning the puller handle locks the jaws onto the application , allowing the desired object to be pulled free when the spindle is turned.
AT A GLANCE
- Quickly and easily mount on a wide range of applications
- Hydraulically applied pulling force increases pulling capacity, reducing operator fatigue
- Lock-on jaws offer a secure grip for safe and easy operation
- Synchronous jaw movement enables entire pulling job to be performed by a single operator
- Available in 2 and 3-jaw configurations with or without a detachable hollow cylinder

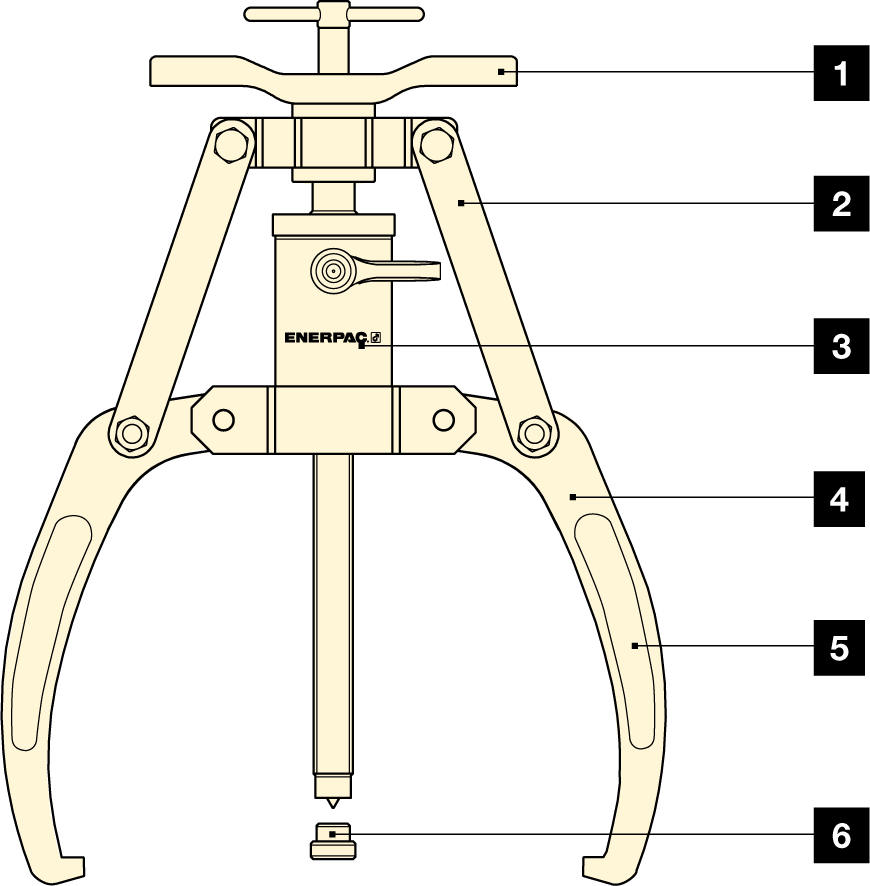

BENEFITS
- Convenient adjustment handle simplifies positioning of jaws on application and increases speed of operation.
- Locking mechanism helps prevent puller jaws from slipping off application during process.
- Detachable hollow cylinder offers increased pulling capacity compared to mechanical alternatives.
- Greater spreading width on jaws enables use on thicker objects.
- Synchronous jaw movement increases ease of use, allowing one operator to mount the tool and perform the pulling application.
- Point protector helps prevent damage to spindle when pulling against a flat surface.
Point Protector
LGH-Series Pullers MUST be used with a point protector if the shaft end does not contain a drilled center hole.
One point protector is included with every puller.
