E-Series, E-Pulse™ Electric Hydraulic Pumps

PERFORMANCE

1. Two-stage pump with high flow/pressure ratio:
   1. 3,51 l/min at 100bar
   2. 2,0 l/min at 175bar
   3. 1,2 l/min at 300bar
   4. 0,5 l/min at 700bar
2. Smart controls enable motor to maintain constant power across the pressure range
3. 24VDC power regulator minimizes effects of poor power supply
4. Six-piston block design provides even flow for smooth operation of cylinder or tool.

DURABILITY

1. Durable aluminium housing
2. High-efficiency permanent magnet, direct drive motor enables continuous use and long service life
3. Built-in thermal protection
4. IP Rating: IP54 on the pump and IP67 on the pendant

CONVENIENCE

1. Speed control with dial adjustment for precise operation
2. Pendant and cord management system
3. Convenient oil fill port, oil level indicator and automatic breather.

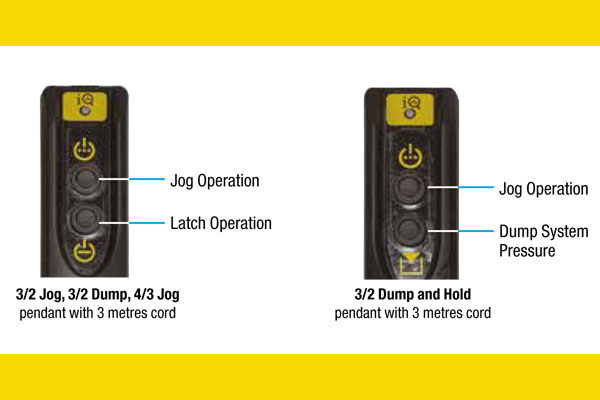

Interactive Pendant

Integrated pendant control with magnet that fits securely into the handle of the pump.

• Operation, programming and diagnostics status provided to operator with yellow, green and red LED as well as vibration pulses.
• Fault codes warn operators of any issues related to voltage, temperature, button controls, or if professional service is required.
