▼ Shown from left to right: VC-20, VC-4L
Product images are for reference purposes only and may differ from the actual product.

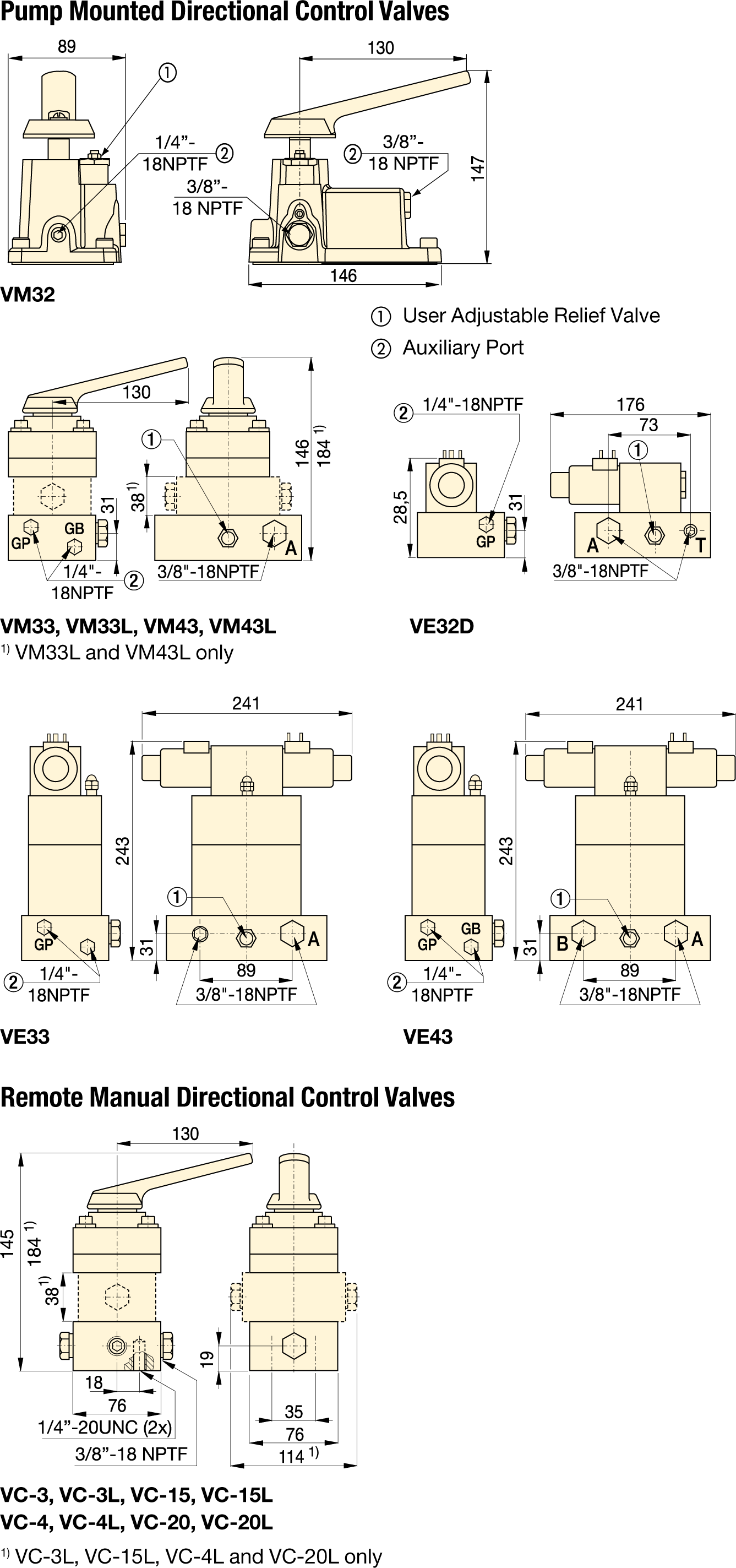

VC-Series, Remote Manual Directional Control Valves
The Enerpac VC-Series, Remote Manual Directional Control Valves are available in a wide variety of models and allows for reliable control of single and double-acting cylinders and tools. View the full specifications below:
- Maximum Flow Capacity: 17 l/min
- Maximum Operating Pressure: 700 bar
- Advance/Hold/Retract operation for use with single-acting or double-acting cylinders and tools
- Return line kit included with remote valves.
Locking Valves
For applications that require positive load holding, VC-Series valves are available with a pilot-operated check valve. This option provides hydraulic locking of the load until the valve is shifted into the retract position.
Gauges
Minimise the risk of overloading and ensure long, dependable service from your equipment.
Fittings
For additional fittings see the System Components page.
