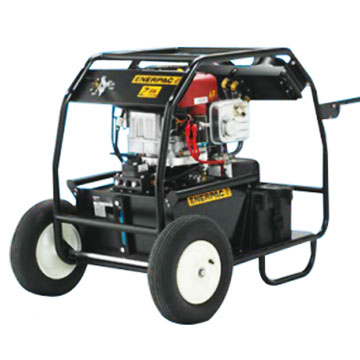

▼ Shown: ZG6440MX-BCFH
ZG Series Gasoline Hydraulic Pumps
Product images are for reference purposes only and may differ from the actual product.

ZG-Series, Gasoline Hydraulic Pumps

The Enerpac ZG-Series, Gasoline Hydraulic Pumps features a Z-Class high efficiency pump design, higher oil flow and bypass pressure. View the full specifications below:

  • Reservoir Capacity: 10-20-40 litres
  • Flow at Rated Pressure: 1.6-3.3 l/min
  • Engine Size: 4.1-4.8-9.7 kW
  • Maximum Operating Pressure: 700 bar
  • Valve Function: Advance / Hold / Retract
  • Relief Valve Adjustment Range (bar): 70-700 bar
  • Sound Level: 88-93 dBA

ZG-SERIES PRODUCT DESCRIPTION

  • Two-speed operation reduces cycle time for improved productivity
  • User adjustable relief valve built-in on manual valves. Oil ports on valves are 3/8” NPTF
  • Available in three 4-cycle engine sizes: 4.1 kW Honda and 4.8 kW and 9.7 kW Briggs & Stratton
  • Full sight oil level glass on all reservoirs allow quick and easy oil level monitoring

ZG6-Series

  • Easy serviceable 9.7 kW 4-cycle gasoline engine with electric start, pressurized oil and 12 Volt charge output for accessories
  • Dual forced air heat exchangers stabilizes hydraulic oil temperature
  • Sturdy wheeled cart with collapsible handles

GA45GC Gauge Adaptor Assembly
Protect yourself from system overloading by simply ordering one part number for a pre-assembled gauge, adaptor block and coupler.

User Adjustable Relief Valve
All VM-Series directional valves have a user adjustable relief valve to allow the operator to easily set optimum working pressure.

High Pressure Hoses
Kiloton offers a complete line of high quality hydraulic hoses. To ensure the integrity of your system, specify only genuine Enerpac hydraulic hoses.

Enerpac ZG-Series Gasoline Hydraulic Pumps Information Package
