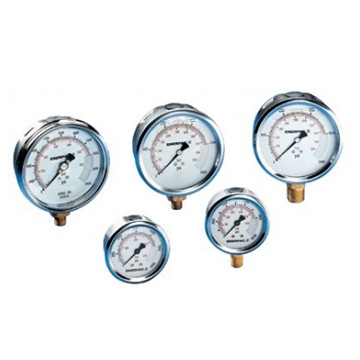

Shown from left to right: H4049L, G-2534R, G-4089L, G-2535L, G-4040L
Enerpac G and H-Series, Hydraulic Pressure Gauges
Product images are for reference purposes only and may differ from the actual product.

Enerpac G, H-Series, Hydraulic Pressure Gauges

The G & H-Series Enerpac Hydraulic Pressure Gauges are a visual reference of system pressure. More information on the above mentioned series can be viewed below.

  • Pressure Range: 0-1000 bar
  • Face Diameter: 63-100 mm
  • Accuracy, % of full scale: +- 1.0 – 1.5%

CAUTION! | When lifting or pressing, always use a gauge.

Do not override factory setting of relief valves. Always use a gauge to check system pressure. A gauge is your “window” to the system. It lets you see what’s going on.

Request A Demo
Request A Quote

G-Series, Glycerine Filled Gauges

  • Dual scale reading calibrated in bar and psi
  • All pressure sensing parts sealed and dampened by glycerine for long life
  • Includes safety blow-out disk and pressure equalizing membrane
  • Gauge snubbers or needle valves recommended for high cycle applications

H-Series, High Cycle Dry Gauges

  • Dual scale reading calibrated in bar and psi
  • Ideal for use in many applications, specifically for high cycle and harsh environments
  • Gauge snubbers or needle valves recommended to shut off gauge when not in use

DIMENSIONS

Dimensions for G and H-Series Enerpac Hydraulic Pressure Gauges

*Note: The dimensions shown above is for reference only.

SERIES COMPARISON

Gauge Series Pressure Range Model Number Major Graduation Minor Graduation Major Graduation Minor Graduation
Ø 63
1/4″ NPTF
Mount
Ø 63
1/4″
Center Rear
Ø 100
1/4″ NPTF
Lower Mount
Ø 100
1/2″ NPTF
Lower Mount
(bar) (psi) (bar) (psi) (bar) (psi) (bar) (psi)
(bar) (psi) Accuracy: +-1,5% Accuracy: +- 1,0% Ø  63 Ø 100 Ø  63 Ø 100 Ø  63 Ø 100 Ø  63 Ø 100
G-Series 0-70 0-100 G2509L 1 0.01 10 2
G-Series 0-11 0-160 G2510L 1 0.02 10 2
G-Series 0-14 0-200 G2511L 1 0.02 50 5
G-Series 0-20 0-300 G2512L 5 0.50 50 5
G-Series 0-40 0-600 G2513L 10 1.00 100 10
G-Series 0-70 0-1,000 G2514L G2531R 10 1.00 100 20
G-Series 0-140 0-2,000 G2515L 10 5.00 500 50
G-Series 0-200 0-3,000 G2516L 50 5.00 500 50
G-Series 0-400 0-6,000 G2517L G2534R 100 10 1000 100
G-Series 0-700 0-10,000 G2535L G2537R G4088L G4039L 100 100 10 10 2000 1000 200 100
G-Series 0-1000 0-15,000 G2536L G2538R G4089L G4040L 100 100 20 20 3000 3000 200 200
H-Series 0-700 0-10,000 H4049L H4071L 100 10 1000 100

Gauge Adaptor Assembly
45° Angled gauge adaptor GA45GC improves safe working conditions.

Gauge Adaptor
For easy gauge installation into almost any system, Kiloton offers a complete line of Enerpac gauge adaptors.

Snubber Valve V-91
Infinitely adjustable for metering oil out of a gauge. The V-91 Snubber Valve is also suitable as a shut-off valve to protect the gauge during high cycle applications.

Maximum Indicator Pointer
Indicator retains peak readings of pressure or force generated by the system. Can easily be installed on GP and H-Series Ø 100mm gauges.

Order model nr: BSA-881
